Genuine Suzuki Jimny Free Wheel Hub - No 24
Others Also Bought
Genuine Suzuki Jimny Free Wheel Hub - No.24 (43810-76J02)
Position number: 24
Description

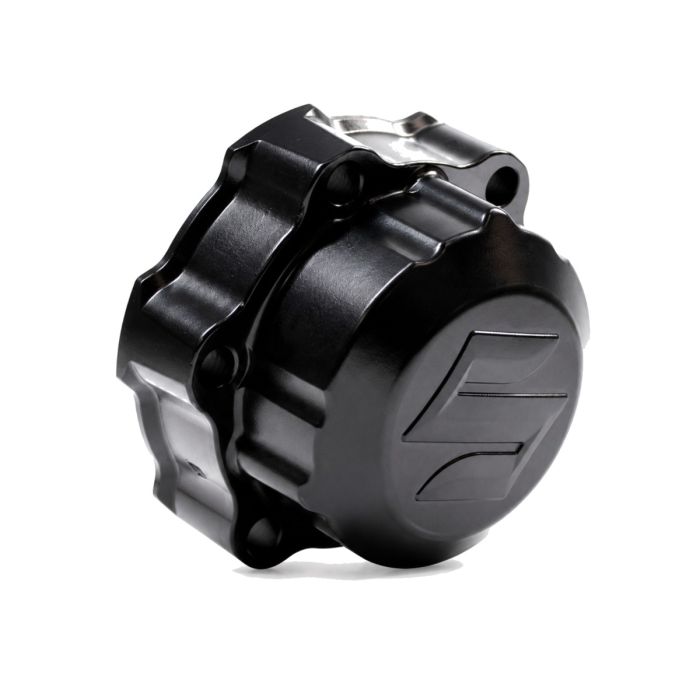

This is a genuine Suzuki front free wheel air-locking hub for the Suzuki Jimny. It forms part of the front axle 4WD system, engaging and disengaging the front wheel hub as required when switching between two-wheel drive and four-wheel drive. Suzuki identifies part number 43810-76J02 as the air-locking hub assembly.
Key Features
Genuine Suzuki OEM free wheel hub for exact fit and factory operation.
Air/vacuum-operated locking hub for the front axle.
Allows the front axle to engage correctly when four-wheel drive is selected.
Suitable for either the left or right front side.
Direct replacement for Suzuki part number 43810-76J02.
Fitment
Suzuki Jimny
OEM part number: 43810-76J02
Position number: 24 in the Suzuki parts diagram.
Front axle – suitable for left-hand or right-hand side.
Suitable for RHD and LHD applications where part number 43810-76J02 is specified.
When to replace
If the hub fails to engage or disengage correctly.
If four-wheel drive engagement becomes unreliable.
If the hub is damaged, worn, or leaking.
If the original vacuum-operated hub has failed.
What’s included
One genuine Suzuki Jimny free wheel air-locking hub – part number 43810-76J02.
Notes
Sold as one individual hub only. If replacing both front hubs, a quantity of two will be required. This is a genuine Suzuki air-locking hub assembly.
| Weight | 0.00 |
|---|
