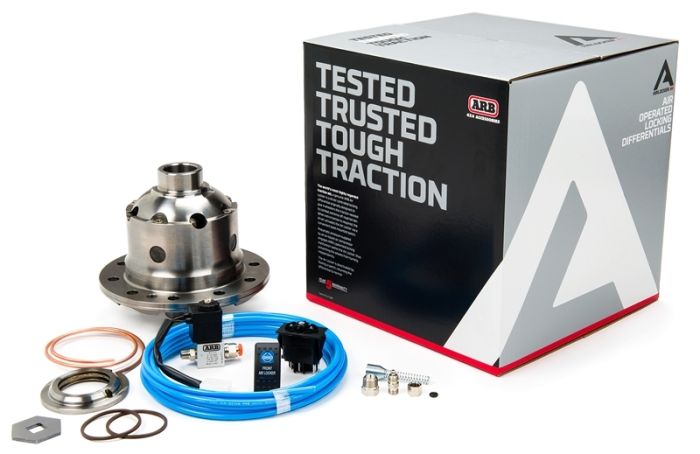

Suzuki Jimny Front ARB Differential Locker

A genuine Front ARB diff locker for the Suzuki Jimny 98 on

These lockers run open under normal use and at the flick of a switch you can lock them up for 100% diff lock

These are genuine ARB products not the chinese imports

There are 2 models of Jimny front ARB locker

RD206 is a 10 bolt ring gear and is found on 2003 onwards models

RD207 is a 8 bolt ring gear and found on 1998 to 2003 models

You will need a compressor to operate the diff lock which is available in the store

Here is the full spec from ARB and a short video to show how they work

Many people believe that a 4WD and traction go hand in hand… you can’t have one without the other. However, your vehicle’s standard (or open) differential is designed to allow each wheel to turn independently, thus eliminating binding during turns. Off road, this becomes a major burden as engine power will take the path of least resistance, which occurs at the wheels with little or no traction. Newer vehicles with limited slip differentials may offer some improvement, but more often you’ll find the slipping is not ‘limited’ enough to maintain forward progress. Automatic locking differentials also have their disadvantages. Aside from being noisy when disengaging, they can also upset the on-highway driving characteristics of your vehicle.

The Solution: Created to provide 100% traction on demand, without sacrificing any of your vehicle’s highway driving performance, ARB Air Lockers employ a 12 volt air compressor designed to activate (and deactivate) a solid and durable locking mechanism inside the differential. This gives you the traction you need, when you need it, all at the flick of a switch, and all within the safety and comfort of the driver’s seat. The advantage of the ARB Air Locker lies in the pneumatically operated locking system inside the differential. When activated, the Air Locker prevents the differential gears from rotating and therefore prevents the axle shafts from turning independently of each other. With both wheels tied directly to the rotation of the crown wheel, the vehicle maintains maximum possible traction at all times. When unlocked, it operates just like a conventional ‘open’ differential. In addition to providing outright improvements to a 4x4’s off road capabilities, the Air Locker offers significant environmental benefits. An Air Locker equipped truck can be driven in a slower, safer and more controlled manner, greatly reducing the likelihood of vehicle damage and environmental impact.
