Suzuki Jimny Trail Gear Transfer Box Case Gears 15% High & 104% Low Reduction Auto Transmission (05 - 18)

Availability: 1 in stock

Ships tomorrow if ordered in the next 20 hours and 32 minutes!

SKU
TGI-308359
£675.00 £562.50

Suzuki Jimny 2005-2018 Trail-Gear 15% / 104% Transfer Box Reduction Gears - Automatic

Upgrade the off-road capability of your Suzuki Jimny Generation 3 (2005-2018) with this Trail-Gear 15% high-range and 104% low-range transfer box reduction gear kit, designed for Jimnys fitted with a 4-speed automatic gearbox and the later electric push-button transfer box.

These reduction gears provide a 15% reduction in high range and a substantial 104% reduction in low range, helping compensate for larger diameter tyres while providing significantly lower crawling speeds for demanding off-road terrain.

Manufactured from high-strength, heat-treated and carburised SCM415 alloy steel, the replacement gears are designed to provide strength and durability in demanding off-road conditions.

IMPORTANT: Suitable for automatic gearbox models with the electric push-button transfer box only. Not suitable for manual gearbox vehicles or earlier lever-operated transfer boxes.

15% High Range Reduction

The 15% high-range reduction helps compensate for the increased overall gearing caused by fitting larger diameter off-road tyres.

By lowering the transfer box high-range gearing, this conversion helps restore some of the mechanical advantage lost when larger tyres are fitted, improving low-speed drivability and providing greater torque multiplication at the wheels.

  • High-range reduction: Approximately 15%
  • Transfer box: Electric push-button operated

Please note: High-range gearing is also used during normal road driving. This conversion will increase engine RPM at a given road speed compared with the original gearing, assuming the same tyre size.

104% Low Range Reduction

The substantial 104% low-range reduction provides significantly lower gearing for technical off-road driving, allowing the Jimny to crawl over difficult obstacles at much slower speeds.

This makes the kit particularly suitable for vehicles tackling steep climbs, rocky terrain, deep ruts and demanding off-road conditions.

  • Low-range reduction: Approximately 104%
  • Recommended tyre size: 29" (736mm) or larger

Benefits include:

  • Significantly improved low-speed off-road control
  • Greater torque multiplication at the wheels
  • Improved control on steep climbs and descents
  • Better gearing for larger diameter off-road tyres
  • Greater control when manoeuvring over rocks, ruts and difficult obstacles
  • Improved crawling capability in demanding off-road conditions

High-Strength SCM415 Alloy Steel Gears

Trail-Gear manufactures these replacement gears from high-strength SCM415 alloy steel, which is heat-treated and carburised for durability.

The kit includes four replacement transfer box gears, providing the 15% high-range and 104% low-range reductions.

These gears are specifically designed for compatible chain-drive, electric push-button Jimny transfer boxes fitted to automatic gearbox vehicles.

Features

  • Manufactured by Trail-Gear
  • 15% high-range reduction
  • 104% low-range reduction
  • High-strength SCM415 alloy steel gears
  • Heat-treated and carburised gear construction
  • Designed for vehicles running 29" tyres or larger
  • Significantly improved low-speed off-road control
  • Four replacement transfer box gears included
  • Includes replacement oil seals and staking nuts
  • Includes Ultra Grey RTV silicone
  • Designed for automatic gearbox Jimnys
  • Suitable for electric push-button transfer boxes only
  • Installation instructions available

Specifications

  • Manufacturer: Trail-Gear
  • Vehicle: Suzuki Jimny Generation 3
  • Main gearbox: 4-speed automatic only
  • Transfer box type: Electric push-button operated, chain-drive
  • Gear material: SCM415 alloy steel
  • Gear treatment: Heat-treated and carburised
  • High-range reduction: 15%
  • Low-range reduction: 104%
  • Recommended tyre size: 29" (736mm) or larger
  • Transfer box housing modification: Minor internal clearancing required

Kit Contents

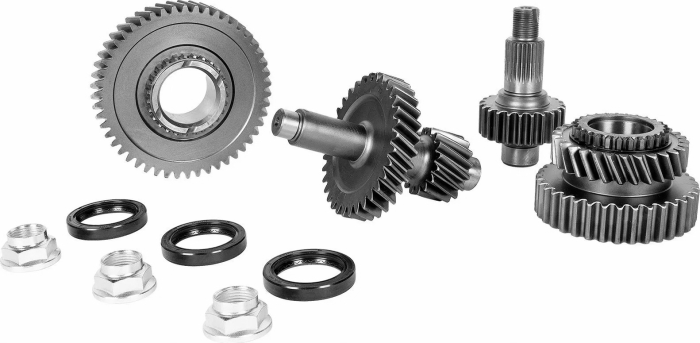

This complete Trail-Gear reduction gear kit includes:

  • 1 x Replacement input shaft gear
  • 1 x Replacement low output gear
  • 1 x Replacement sprocket output gear
  • 1 x Replacement countershaft gear
  • 3 x Trail-Safe Jimny transfer box input/output oil seals
  • 3 x New staking nuts
  • 1 x Tube of Ultra Grey RTV silicone
  • Installation instructions available online

Vehicle Fitment

Designed for Suzuki Jimny models fitted with an automatic gearbox and electric push-button transfer box.

  • Suzuki Jimny JB23 - Automatic, push-button transfer box
  • Suzuki Jimny JB33 - Automatic, push-button transfer box
  • Suzuki Jimny JB43 - Automatic, push-button transfer box

For UK-market Generation 3 Jimnys, this generally covers the later 2005-2018 models fitted with the electric push-button transfer box.

IMPORTANT: This kit is for automatic gearbox Jimnys with the electric push-button transfer box only. It is NOT suitable for manual gearbox vehicles or earlier lever-operated transfer boxes.

Please check both the main gearbox and transfer box type before ordering, particularly on vehicles near the changeover period or those fitted with replacement transfer boxes.

Installation Information

Installation requires removal and dismantling of the transfer box to replace the original gearing.

Minor internal clearancing of the transfer box housing is required to accommodate the replacement gears. This is a normal part of the installation procedure specified by Trail-Gear.

Due to the mechanical work and housing modifications involved, professional installation or experience with transfer box rebuilding is strongly recommended.

Installation Instructions:

Instructions Click Here

Please note: These are the Trail-Gear installation instructions for the electric push-button Jimny transfer box reduction gear conversion. Follow the manufacturer's procedure and confirm the instructions correspond to your particular kit before installation.

Important Information

  • 4-speed automatic gearbox models only.
  • Electric push-button transfer boxes only.
  • Not suitable for manual gearbox vehicles.
  • Not suitable for earlier lever-operated transfer boxes.
  • High-range gearing reduced by approximately 15%.
  • Low-range gearing reduced by approximately 104%.
  • Both high-range and low-range gearing are changed by this conversion.
  • Recommended for vehicles running 29" tyres or larger.
  • Minor clearancing of the transfer box housing is required.
  • Includes four replacement gears, oil seals, staking nuts and RTV silicone.
  • Professional installation or experience rebuilding transfer boxes is recommended.

Please confirm your vehicle has a 4-speed automatic gearbox and the electric push-button transfer box before ordering.
