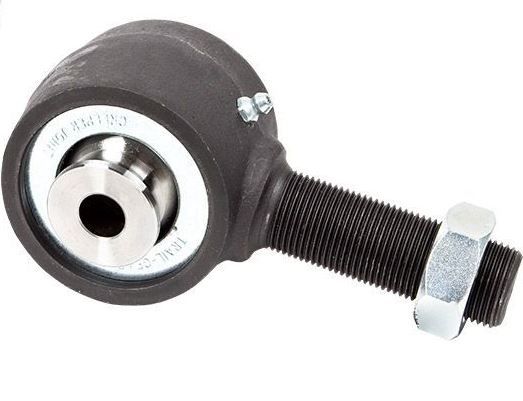

Trail Gear Creeper Joint 1.25" RH 5/8" (16mm)
Availability: 16 in stock
These heavy duty rod ends are ideal for today's flexible suspension systems. Super strong, Creeper Joints will hold up to years of punishment. The outer shell is a single forged piece. The inner flex ball is made from 8620 tool steel and rides on high quality polyurethane bushings. Heavy-duty, hardened steel washers hold the joint together. Creeper Joints are super flexible and allow for up to 40 degrees of movement when used with spacers. A threaded grease fitting is provided on top for lubrication. The flex ball is drilled for cross lubrication flow from the shell to the link mount bolt. Each joint includes a jam nut!
Flex ball size is 5/8". The threaded section is 1-1/4" in diameter with 12 threads per inch respectively.
Using a Creeper Joint on the shackle end of a leaf spring reduces spring binding and increases suspension flex. Creeper Joint shackle mounts are sold in pairs and do not include the shackles, bolts, or spring bushings.
Specifications
The outer shell is a single forged piece of SAE 5140 chromoly steel
The inner flex ball is made from 8620 tool steel and rides on high quality polyurethane bushings
Heavy-duty, hardened steel washers hold the joint together
Allows for up to 40 degrees of movement when used with spacers
A threaded grease fitting is provided on top for lubrication
The flex ball is drilled for cross lubrication flow from the shell to the link mount bolt
Each joint includes a jam nut
Sold as a single piece
