Suzuki SJ / Samurai EOS Extreme Duty Transfer Case Cradle

For years, the pages had continued to turn attempting to make the best transfer case cradle for the Suzuki Samurai. In 2012, Low Range Off-Road set out to make an end to that story and in 2014, after 2 years of development and testing, a bestseller was born.

Low Range's efforts were motivated by repeated transfer case breakage after installing low range t-case gears. The factory brackets are made of thin sheet metal with only 4 points of contact on each side of the case. High torque situations or simply letting out the clutch too fast in low range can cause the mounts to bend, which in turn causes pulling or breaking of the soft aluminum transfer case. In addition, the factory brackets attach to the frame itself in only 3 places creating additional vulnerability. Other aftermarket cradles do not address the transfer case's rigidity problems and use only factory mounting locations to attach their cradle to the case.

So what sets this cradle apart from the competition?

Low Range started from scratch and made a mount with 17 points of contact to the transfer case. The EOS has a full circle backbone that distributes torque around the whole case. With added strength comes a dramatically reduced risk of t-case breakage and extended gear life.

To address the weak bracket that mounts to the frame in only 3 places, we added a 4th frame mount location on the cradle arm. This reduces the chances of the frame breaking at the mount points - a common occurrence with the Samurai.

Other features include:

Compatible with Low Range’s Samurai transfer case e-brake (SB-EBK-LR)
A lower skid plate to protect the transfer case from trail abrasion
All necessary hardware included- even the necessary drill bits
CNC laser cut, CNC press bent, hand MIG welded
Zinc plated for corrosion resistance
If you have low range transfer case gears installed, we highly recommend this transfer case mount because it will save you money! Going without it is a gamble with lousy odds.

NOTE: MAY NOT WORK WITH ALL EXHAUST SYSTEMS.

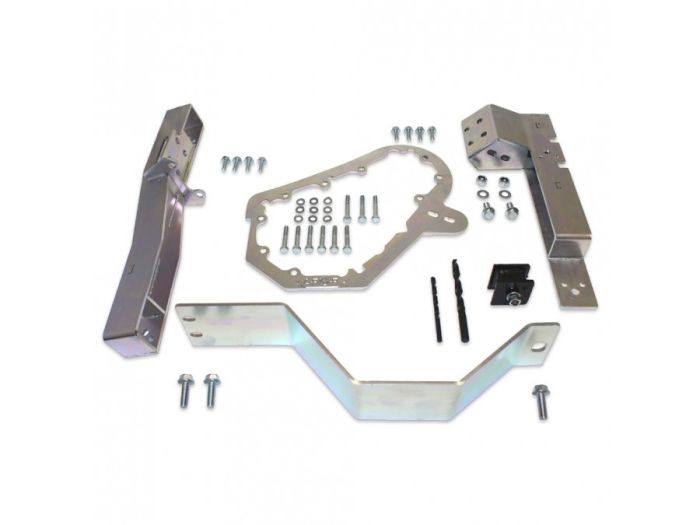

Includes:

(1) Backbone
(1) Long arm
(1) Short arm
(1) Skid plate
(1) Factory transfer case rubber mount
(2) Drill bits
(1) Set of full-color instructions
PLUS All nuts, bolts, and washers to mount up your transfer case
