Longfield Nissan Patrol Y60 Heavy Duty CV Joint Birfield Kit

Longfield Nissan Patrol Y60 30-Spline CV Joint & Axle Kit

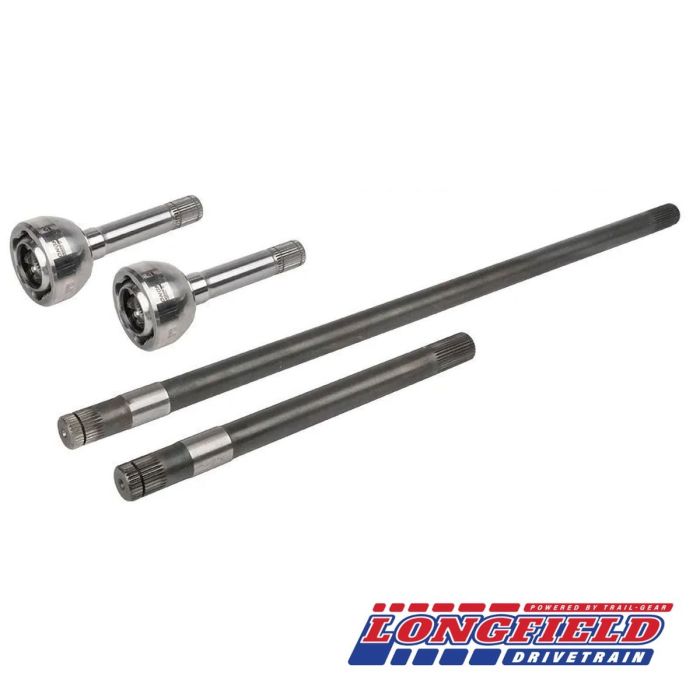

The Longfield™ Nissan Patrol Y60 30-Spline CV Joint & Axle Kit is a heavy-duty front axle upgrade for the Nissan Patrol Y60 / GQ.

The Longfield gun-drilled 30-spline CV joints are manufactured from chromoly steel and precision polished to remove imperfections which could create stress risers. The internal components are manufactured from 4340 chromoly steel and dual heat treated for increased strength.

Gun Drilled CV Joint Greasing System

Each CV joint features an M8 grease nipple at the end of the stub shaft and is gun drilled through the centre, allowing grease to pass through the grease nipple directly into the internal components.

This makes servicing and re-greasing the CV joints considerably easier, without having to dismantle the axle simply to grease the joint.

Machined Spline Saver

The 30-spline CV joints feature a shallow machined relief near the splines on the stub shaft, known by Longfield as the Machined Spline Saver.

This is designed to reduce stress concentrations caused by the spline machining process. The spline area can be a common failure point on heavily loaded CV stub shafts.

4340 Chromoly Axle Shafts

The supplied front axle shafts are manufactured from 4340 chromoly steel. The CV joint end of the axle shafts is 30-spline and the differential end is 31-spline.

Specifications

• Longfield™ heavy-duty 30-spline CV joints
• Chromoly CV joint construction
• 4340 chromoly internal components
• Dual heat-treated internals for increased strength
• Precision polished to help reduce stress risers
• Gun drilled through the centre for easier greasing
• M8 grease nipple fitted to the end of the stub shaft
• Longfield Machined Spline Saver design
• 4340 chromoly axle shafts
• CV joint end: 30 spline
• Differential end: 31 spline

Vehicle Fitment

• Nissan Patrol GR Y60 – 1987-1997
• Nissan Patrol GQ – 1987-1997
• Nissan Patrol Safari Y60 – 1987-1997
• Nissan Safari Y60 – 1987-1997
• Ford Maverick – 1988-1994

Installation Note

Some minor clearancing of the steering knuckle / knuckle ball may be required during installation.

Trail-Gear Part Number: 300795-KIT

Longfield and Trail-Gear literature refers to these CV joints as “Birfields”. In the UK they are more commonly referred to as CV joints.
