Jimny M13AA DOHC Xtreme Outback Heavy Duty Organic Clutch Kit

Xtreme Outback Heavy Duty 4x4 and SUV clutch kits offer improvements in performance and durability for a broad range of vehicles whilst retaining near factory-type drivability.

The Xtreme Outback - Heavy Duty Organic Clutch Kit uses an upgraded pressure plate with increased clamping pressure compared with standard, between 20-40% depending on the demands of the individual vehicle, combined with an organic friction disc.

Heavy Duty Organic Clutch Kit delivers substantial increases in performance and power holding capability whilst retaining near factory type drivability and is designed primarily for high performance road going vehicles, heavily loaded and also for towing vehicles.

Clutch Pro has a reputation throughout Australia and now in Europe for supplying the highest quality original equipment type clutch kits, clutch components, systems and accessories.

Clutch Pro globally sources from respected original equipment manufacturers to complete their comprehensive range.

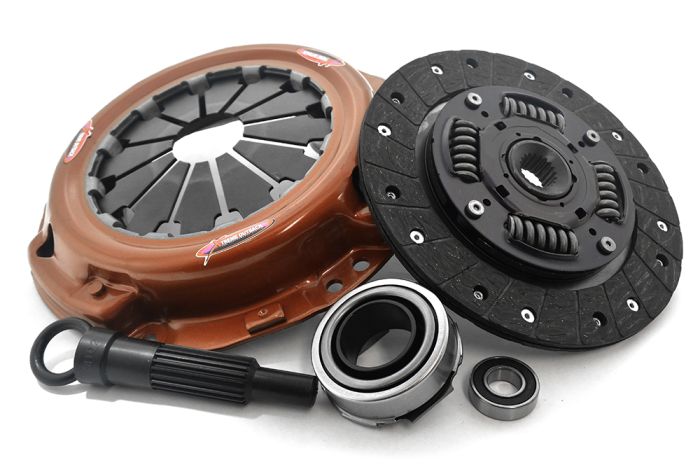

This clutch is a high quality full kit that consists of :-

Pressure Plate

Clutch

Alignment Tool

Release Bearing

Pilot Bearing

Fitting Grease / Oil

Suitable for the following vehicles:-

Jimny 1.3 16V fitted with the M13AA Double cam 16V engine in both non VVT and VVT

As a rule these engines were fitted into hardtop jimnys from around 2001 to 2018

then in softtop jimnys from 2006 on

A photo of the engine that this model fits is shown in the pictures

Specifications: -

Torque (Nm) 250

Clamp Load 550KG (60% inc.)

Flywheel Step -2.1mm

Clutch Disc Diameter (mm) 190

Clutch Disc Spline Count 20

Clutch Disc Spline Diameter (mm) 22,8

Recommended for Street Performance, Heavily Loaded or Tow Vehicles

Design Single Plate

Diameter [mm] 190

Stage - Stage 1
