Jimny G13BB SOHC Xtreme Outback Heavy Duty Organic Clutch Kit
Availability: 1 in stock
Ships tomorrow if ordered in the next 15 hours and 57 minutes!
Xtreme Outback Heavy Duty 4x4 and SUV clutch kits offer improvements in performance and durability for a broad range of vehicles whilst retaining near factory-type drivability.
The Xtreme Outback - Heavy Duty Organic Clutch Kit uses an upgraded pressure plate with increased clamping pressure compared with standard, between 20-40% depending on the demands of the individual vehicle, combined with an organic friction disc.
Heavy Duty Organic Clutch Kit delivers substantial increases in performance and power holding capability whilst retaining near factory type drivability and is designed primarily for high performance road going vehicles, heavily loaded and also for towing vehicles.
Clutch Pro has a reputation throughout Australia and now in Europe for supplying the highest quality original equipment type clutch kits, clutch components, systems and accessories.
Clutch Pro globally sources from respected original equipment manufacturers to complete their comprehensive range.

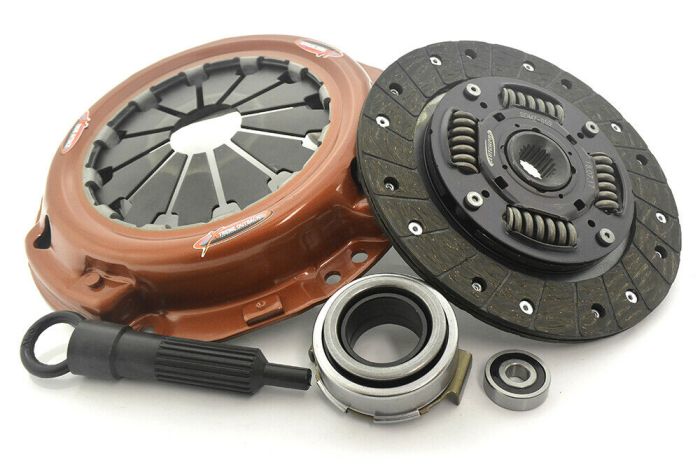

This clutch is a high quality full kit that consists of :-
Pressure Plate
Clutch
Alignment Tool
Release Bearing
Pilot Bearing
Fitting Grease / Oil
Suitable for the following vehicles:-
Jimny 1.3 16V fitted with the G13BB single cam 16V engine
As a rule these engines were fitted into hardtop jimnys from around 1997 to 2000
then in softtop jimnys from 1997 to 2005
A photo of the engine that this model fits is shown in the pictures
Specifications: -
Torque (Nm) 250
Clamp Load 550KG (60% inc.)
Flywheel Step -2.1mm
Clutch Disc Diameter (mm) 190
Clutch Disc Spline Count 20
Clutch Disc Spline Diameter (mm) 22,8
Recommended for Street Performance, Heavily Loaded or Tow Vehicles
Design Single Plate
Diameter [mm] 190
Stage - Stage 1
