Suzuki Jimny Sumo Gear Transfer Case Gear Set 15% High Reduction Automatic Transmission (05 - 18)

Availability: 3 in stock

Ships tomorrow if ordered in the next 20 hours and 33 minutes!

SKU
SUZ-JIM-1515-T5
£687.22 £572.68

Suzuki Jimny 2005-2018 Sumo 15% / 15% Transfer Box Reduction Gears - Automatic

Upgrade the gearing of your Suzuki Jimny Generation 3 (2005-2018) with this premium Sumo 15% high-range and 15% low-range transfer box reduction gear kit, designed specifically for Jimnys fitted with a 4-speed automatic gearbox and electric push-button transfer box.

Manufactured in Japan by an original equipment (OE) gear manufacturer, Sumo reduction gears are precision-machined from high-quality billet material using advanced manufacturing equipment and tooling.

Designed to provide strength, reliability and smooth, quiet operation, these gears offer a practical solution for Jimny owners running larger diameter tyres who want to improve overall gearing without opting for an extreme low-range reduction.

With a 15% reduction in both high and low range, this kit is particularly suited to vehicles running 29"-30" tyres.

IMPORTANT: Suitable for 4-speed automatic gearbox Jimnys with the electric push-button transfer box only. Not suitable for manual gearbox vehicles or earlier lever-operated transfer boxes.

15% High Range Reduction

Fitting larger diameter tyres to a Suzuki Jimny increases the effective overall gearing, which can reduce acceleration and make the engine work harder, particularly when climbing hills or driving at lower speeds.

The Sumo 15% high-range reduction helps compensate for this change by lowering the transfer box gearing, providing improved mechanical advantage at the wheels.

  • Sumo high-range ratio: 1.522:1
  • High-range reduction: 15%
  • Recommended tyre size: 29"-30"

This reduction is particularly beneficial for Jimnys fitted with larger off-road tyres, helping restore more suitable gearing for everyday driving and general off-road use.

Please note: The high-range reduction also affects normal road driving. Engine RPM at a given road speed will increase compared with the original gearing when using the same tyre size.

15% Low Range Reduction

The Sumo gear kit also provides a 15% reduction in low range, improving low-speed control when driving off-road.

The lower gearing provides greater torque multiplication at the wheels, helping the vehicle negotiate difficult terrain at reduced speeds.

  • Sumo low-range ratio: 3.079:1
  • Low-range reduction: 15%

Benefits include:

  • Improved low-speed off-road control
  • Greater torque multiplication at the wheels
  • Improved gearing for larger diameter tyres
  • Better control on steep climbs and descents
  • More controlled manoeuvring over uneven terrain
  • Suitable for everyday driving and recreational off-road use

Precision-Machined Japanese Sumo Gears

Sumo gears are manufactured in Japan by an experienced OE gear manufacturer, using high-quality billet material and precision machining processes.

Each gear is manufactured using modern machinery and tooling to achieve the accuracy required for reliable transfer box operation.

The emphasis on manufacturing quality is intended to provide:

  • Strength and durability
  • Reliable operation
  • Accurate gear engagement
  • Smooth, quiet running
  • Consistent manufacturing quality

This makes Sumo reduction gears a premium option for Jimny owners who want improved gearing while retaining a relatively mild reduction ratio.

Ideal for 29"-30" Tyres

This Sumo kit is recommended for Suzuki Jimnys running 29"-30" tyres.

When larger tyres are fitted, the effective gearing becomes taller, which can reduce the vehicle's available pulling power at the wheels.

By reducing both high-range and low-range gearing by 15%, the Sumo conversion helps compensate for the increased tyre diameter.

The result is improved mechanical advantage and more suitable gearing for vehicles fitted with larger all-terrain or mud-terrain tyres.

Features

  • Manufactured by Sumo Gear
  • Made in Japan
  • Manufactured by an OE gear manufacturer
  • Precision-machined from high-quality billet material
  • 15% high-range reduction
  • 15% low-range reduction
  • Designed for smooth, quiet operation
  • Improved gearing for larger diameter tyres
  • Recommended for 29"-30" tyres
  • Suitable for 4-speed automatic gearbox Jimnys
  • Designed for electric push-button transfer boxes
  • Includes replacement input gear and sprocket drive gear

Specifications

  • Manufacturer: Sumo Gear
  • Country of manufacture: Japan
  • Vehicle: Suzuki Jimny Generation 3
  • Model years: 2005-2018 (subject to transfer box type)
  • Main gearbox: 4-speed automatic only
  • Transfer box type: Electric push-button operated
  • Gear construction: Precision-machined billet material
  • High-range reduction: 15%
  • Low-range reduction: 15%
  • Modified high-range ratio: 1.522:1
  • Modified low-range ratio: 3.079:1
  • Recommended tyre size: 29"-30"

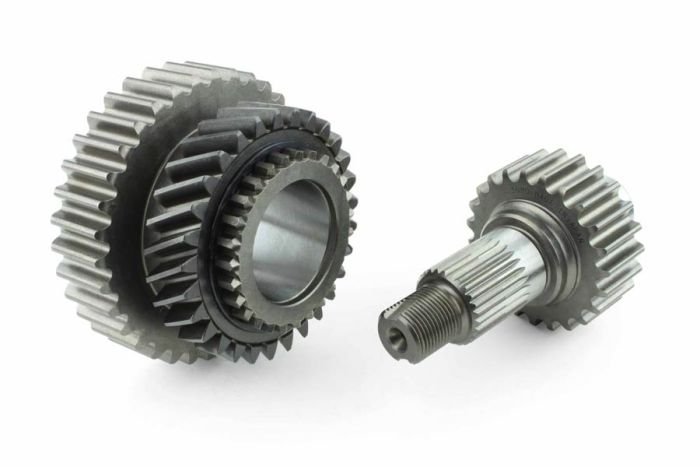

Kit Contents

This Sumo reduction gear kit includes:

  • 1 x Input Gear - Jimny Type 4 & 5
  • 1 x Sprocket Drive Gear - Jimny Type 5

Please note: The kit contents listed above are the components specified by Sumo. Additional installation consumables, seals or gaskets are not listed as included.

Vehicle Fitment

Designed for Suzuki Jimny Generation 3 models fitted with a 4-speed automatic gearbox and electric push-button transfer box.

  • Suzuki Jimny - 2005-2018
  • 4-speed automatic gearbox only
  • Electric push-button transfer box

IMPORTANT: This kit is for automatic gearbox Jimnys with the electric push-button transfer box only. It is NOT suitable for manual gearbox vehicles or earlier lever-operated transfer boxes.

Please check both your main gearbox and transfer box type before ordering, particularly on vehicles near the model changeover period or those fitted with replacement transfer boxes.

Installation Information

Installation requires removal and dismantling of the transfer box to replace the original gearing with the supplied Sumo reduction gears.

As installation involves internal transfer box components, professional installation or experience with transfer box rebuilding is recommended.

Installation Instructions:

Instructions Click Here

Please note: The linked instructions are supplied by Trail-Gear for their Jimny electric push-button transfer box gear conversion. They are provided for general transfer box dismantling and assembly reference only and are not specific Sumo installation instructions. Follow the correct installation requirements for the Sumo kit.

Important Information

  • 4-speed automatic gearbox models only.
  • Electric push-button transfer boxes only.
  • Not suitable for manual gearbox vehicles.
  • Not suitable for earlier lever-operated transfer boxes.
  • High-range gearing reduced by 15%.
  • Low-range gearing reduced by 15%.
  • Recommended for vehicles running 29"-30" tyres.
  • Manufactured in Japan from precision-machined billet material.
  • Kit includes the replacement input gear and sprocket drive gear.
  • Additional installation consumables may be required.
  • Professional installation or experience rebuilding transfer boxes is recommended.

Please confirm your vehicle has a 4-speed automatic gearbox and electric push-button transfer box before ordering.
