ARB 4L 4 Ports Air Tank Kit
Availability: 1 in stock
Ships tomorrow if ordered in the next 12 hours and 43 minutes!
ARB's premium forged Aluminium Air Tank, which is designed to enhance compressed air systems. Here's a breakdown of the key features and components included in the kit:
1. Capacity and Pressure:
• Capacity: Four litres (one gallon)
• Working Pressure: 1034kPa (150psi)
2. Construction:
• Premium forged aluminium construction for lightweight design.
3. Mounting:
• Universal brackets for easy mounting in various orientations.
4. Port Configuration:
• Flexible four-port design.
• 4 x 1/4" NPSC ports on the air tank.
5. Daisy-Chaining:
• Four-port design allows for easy daisy-chaining of additional tanks.
• Enables installation in situations without cross flow.
6. Moisture Management:
• Low porting positions designed to cycle moisture out of the air system as air is consumed.
7. Compressed Air System Enhancement:
• Adding this air tank to your compressed air system increases storage capacity.
8. Compatibility:
• Enables ARB's Maximum Performance On-Board Air Supply (CKMTA, not supplied) to operate most air-powered tools.
Kit Components:

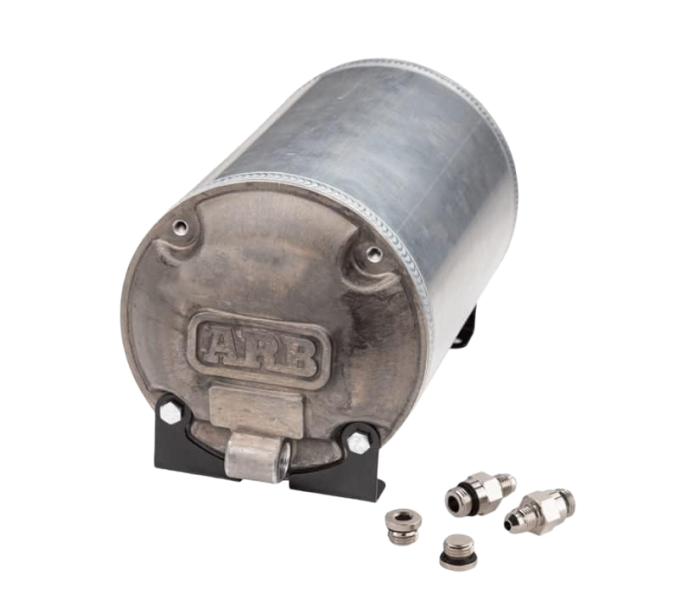

• 1 x Aluminium Air Tank 4L (1 gallon) with 4 x 1/4" NPSC ports (included)
• 2 x 1/4" NPSC to JIC-4 straight fittings (included)
• 2 x 1/4" NPSC port plugs (included)
• 4 x Hex bolts (M6 x 10mm) for mounting (included)
• 2 x Universal mounting brackets (included)
Note:
The kit does not include ARB's Maximum Performance On-Board Air Supply (CKMTA), which is required for operating most air-powered tools.
This air tank kit seems well-equipped to enhance compressed air systems, providing flexibility in mounting, daisy-chaining, and moisture management. Users can benefit from increased compressed air storage capacity for various applications, especially when used in conjunction with ARB's CKMTA for optimal performance with air-powered tools.
