3" / 75mm Suzuki Vitara Black Raptor Lift Kit

This Kit will lift your Vitara / X90 by 3” or 75mm, a truly cost effective lift kit.

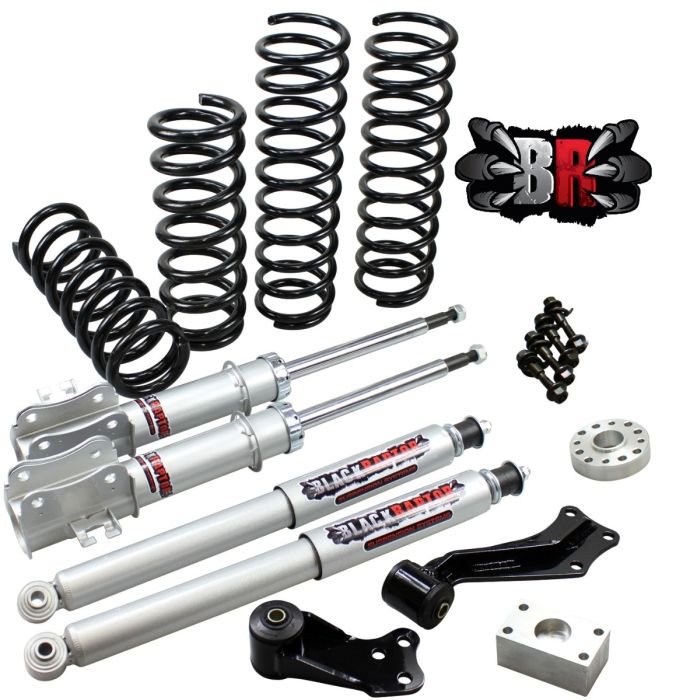

The kit consists of 4x 3” springs, made here in the UK exclusively to us to our own design and have different spring combinations for all vitara models from 1.6 SWB petrol to 2.0TD LWB Diesels. All springs have the full treatment of hardening, quenching and tempering, are all digitally controlled to ensure the correct hardness is achieved, then shot peening, pre-setting and load testing ensure a long and fatigue free life, followed by automotive specific in house powdercoating to ensure a hard and durable powdercoat finish.

The front end is sorted with extended 3" specific Gas charged front shocks to allow the front wheels to drop further, maintaining traction on those off-road trails, with 3" lifts the CV joints will then be at a much sharper angle due to the suspension lift, so a set of front differential drop brackets and included to lower the front diff down to take away the strain from the front CV’s

To finish of the front end some camber bolts are included, after lifting you will find the camber will be out on the front, so we include some camber bolts to suit. Traditionally most kits only come with 2 bolts 1 for each side but we include a full set of 4 to ensure you get the camber 100% correct after the lift.

The rear end is sorted with some extended 3" rear shocks that are Gas charged and specifically tailored to the Vitara to give a smooth and comfy ride both on and off road.

And finally to finish the rear end, a rear axle ball joint spacer or “heim” spacer and rear propshaft spacer with all bolts are included. As due to the 3” lift the ball joint will be outside its working tolerance when taken off-road, so the spacer will bring it back to the correct position. The prop spacer is needed to take up the gap made on the prop spline due to the extra lift and more travel the rear shocks offer.  Please note this is the solid block CNC machined ball joint spacer, that can never fail, as buyer beware there are some poor quality welded steel spacers on the market that fail randomly causing the axle to twist and become dangerously unstable.

 This kit comes with everything you need. No further parts are required.
