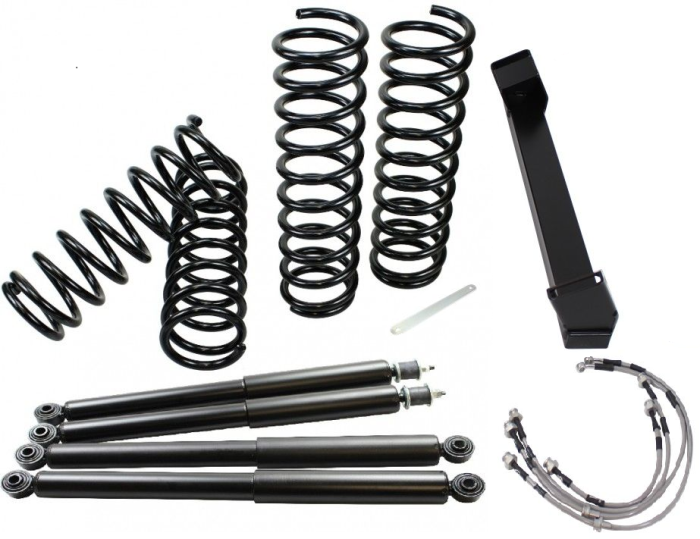

2" / 50mm Suzuki Jimny Black Raptor Stealth Suspension Lift Kit - 2019 On

The springs are nice and flexy and not stiff, and are slightly uprated to cope with the extra height and extra weight drivers can carry on offroading trips

The kits come with specific  LHD and RHD springs

This kit comes with Black Raptor shocks. These gas charged shocks are matched specifically for the Jimny to give the best ride possible.

These shocks are not as stiff as other aftermarket shocks such as Pro Comp or Rough Country.

The Black Raptor shock absorbers are designed with an integrated dust cover to eliminate the risk of any dust or debris damaging the shock, this also eliminates the need to buy boots/gators to protect your shock absorbers.

A Black Raptor decal pack is also included in the kit free of charge

The kit above is the minimum you need to lift your jimny and drive away but here are some of the main

“Frequently asked questions”

1.Do i need to fit extended brake hoses?

Yes as all 2019 Jimnys have short hoses and 45mm is the max length on original hoses

2.Do i need to fit camber correction bushes?

No you don’t need to from a safety / inspection point of view but i always recommend them as they bring the front axle geometry back to factory settings (SuperPro are recommended due to the ease of fit and long life)

3.Do i need the rear shock relocators?

No you don’t need them

4.Some Jimny kits don't offer brake hoses?

With the current 2019 Jimny there is only 45mm of extra downwards travel before the hoses are not long enough and the propshaft hits the cross member during articulation, so to stop this many manufacturers only offer a 1" (25mm) longer front shock thus limiting travel, articulation and offroad ability! So this kit come with full 2" extended shocks for extra travel, extended hoses all round and new front cross member

5. Will the front propshaft hit the cross member?

Yes it will hit the standard factory fitted cross member, so this is why we offer a new cross member in this lift kit
